Interprolog version 2.1.1

4 May 2005

How to download and install

Follow the steps below for your system, to install and verify the required components (Java + Prolog) to use InterProlog.

Step

Comments

Windows 2000, XP

Linux Red Hat 9, Mac OS X

1

Java Technology Home Page

The Java Runtime Environment will be sufficient if you don't plan to write any Java code AND you're using Windows. Otherwise  you need the Java Development Kit

 Download J2SE from java.sun.com site, http://java.sun.com/j2se/1.4.2/download.html, and install it some directory MY_JAVA_DIR in your disk
See if it works in a command shell window, by typing MY_JAVA_DIR\bin\java -version  See if it works in a command shell window, by typing MY_JAVA_DIR/bin/java -version

You should obtain something like this:

java version "1.4.2"
Java(TM) 2 Runtime Environment, Standard Edition (build 1.4.2-b28)
Java HotSpot(TM) Client VM (build 1.4.2-b28, mixed mode)
Write down (or copy into the clipboard...) the path MY_JAVA_DIR.....bin, the directory where the java executable is. We'll use this below to define the JAVA_BIN environment variable


2

XSB Logo

You need XSB Prolog installed with its built-in InterProlog support and/or SWI Prolog

 To get and install XSB Prolog 2.6 with built-in InterProlog (interfacing through sockets and JNI) support follow these instructions. XSB Prolog 2.5 is no longer supported, fall back to InterProlog 2.0.3 if you must use it.

To get and install SWI Prolog (interfacing through sockets, no JNI) just install the standard version.

Write down (or copy into the clipboard...) the paths for the directories containing the executable images of Prolog. We'll use this below to define the XSB_BIN_DIRECTORY and SWI_BIN_DIRECTORY environment variables. These will typically be:

For XSB, MY_XSB_DIR...config.....bin

For SWI, SWI_DIR...bin under Windows, /usr/lib/pl-5.2.13/bin/someMachineDir under Unix


3

Declarativa

 InterProlog is installed by copying a file tree and editing some environment variables Download the InterProlog 2.1.1 zip file from here, which includes this page, and expand it into somewhere in your disk

Look into the windowsScripts directory. Edit windowsVariables.bat, changing the variables JAVA_BIN, XSB_BIN_DIRECTORY and/or SWI_BIN_DIRECTORY to the values you got in the install steps above

Look into the unixScripts directory. Edit unixVariables.sh, changing the variables JAVA_BIN, XSB_BIN_DIRECTORY and/or SWI_BIN_DIRECTORY to the values you got in the install steps above

Mac OS X note: take a look at myMacVariables.sh for inspiration

Make sure the script files are executable:
chmod a+x *.sh

That's it :-)

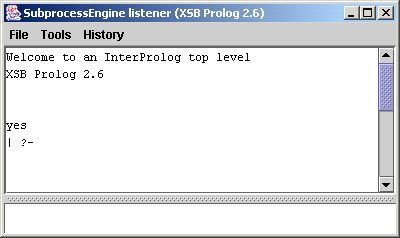

See if it works by running the run....listener.bat scripts (./run...listener.sh in Unix). A Java window with a Prolog listener should appear, looking perhaps like this:

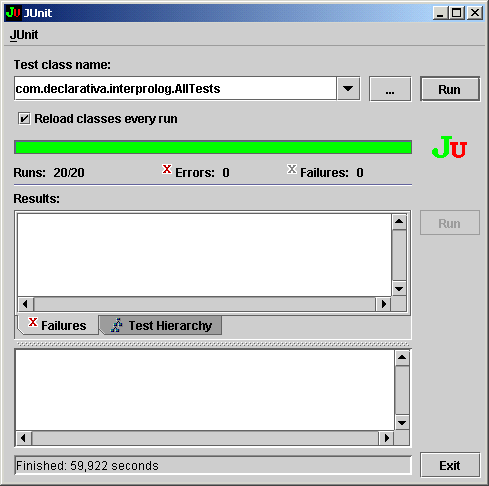

If you installed ALL Prologs supported by InterProlog (currently XSB and SWI), you can optionally run the standard test suite, using the script testit; when finished successfully (after about a couple of minutes in a 400MHz Pentium) the following window will appear:

If things don't go well: first make sure the steps above were done properly; then open a command shell window, cd to the interprolog21 directly, edit the failing script to include the -debug flag, run it and email the console log to interprolog@declarativa.pt

For example, to make runSWISPlistener.bat report debugging information edit the command line to

%JAVA_BIN%\java -classpath %CLASSPATH%;..\interprolog.jar com.declarativa.interprolog.gui.SWISubprocessEngineWindow -debug



4

Using it

 For Prolog development, use runXXXSPListener, which acts as a simple graphical front-end to the full Prolog system through a SubprocessEngine (using sockets), allowing you to get multiple solutions, Prolog textual I/O etc. runNativeListener uses the JNI interface (currently available only for XSB Prolog), which lacks the traditional top level

Try some Prolog goals, such as browseTerm(vp(np(interprolog),verb(working))), which should display a tree. You may drag your Prolog source files into the listener window for consulting, or use the menu "File/Consult" . Edit the files with you favorite editor.

Some documentation:

Please do provide any feedback to interprolog@declarativa.com. Good luck!

Miguel Calejo
Declarativa

Improvements over version 2.03

  • Multiple PROLOG support: XSB Prolog and  SWI Prolog
    • SubprocessEngine is now an abstract class, to accomodate the support of multiple Prolog implementations. The "old" SubprocessEngine is now XSBSubprocessEngine
    • The interprolog.P is gone from com/declarativa/interprolog; each Prolog implementation has its specific file in this directory, typically in a subdirectory, currently xsb/interprolog.P and swi/interprolog.pl; most of the specific Prolog dependencies are in these files and in PrologImplementationPeer subclasses
    • New method toString(PrologEngine engine) in class TermModel, uses the standard startup (not necessarily current) operator definitions for the engine, rather than the common (engine) subset.
  • Functional and other improvements
    • PrologEngine.consultAbsolute(File): consults a Prolog file from an absolute path
      Another variant of the deterministicGoal method: TermModel deterministicGoal(TermModel G), useful for inter-Prolog goal calling. For example, the following goal (running in any supported Prolog, say XSB) instantiates a SWI engine and obtains a goal solution for goal G:
      javaMessage('com.declarativa.interprolog.SWISubprocessEngine',SWI,'SWISubprocessEngine'), buildTermModel(G,GM), javaMessage(SWI,SM,deterministicGoal(GM)), recoverTermModel(SM,Solution), javaMessage(SWI,shutdown).
    • More robust PrologEngine.interrupt() handling, by using Prolog throw/catch
    • Improved InterProlog debugging information for SubprocessEngines created with the debug argument true: they now print to System.err ALL Prolog output during startup
  • Runtime environment configuration
    • Zero-argument Prolog engine constructors, for easier use in some contexts. For a PrologEngine to be instantiated without a constructor argument, a property must be defined in either file interprolog.defs (a Properties file in the format described in http://java.sun.com/j2se/1.4.2/docs/api/java/util/Properties.html , in the directory where the jar file containing the InterProlog classes is) or in the global properties (by using the -D java switch). The properties should include XSB_BIN_DIRECTORY and/or SWI_BIN_DIRECTORY, depending on which Prolog(s) you're using
    • NativeEngine now requires as argument (either explicitly or implicitly through the above Properties mechanism) the path to the XSB binary directory as the constructor argument, rather than the base directory as before, to simplify configuration; notice that this has more information than the base directory, eg for XSB it embbeds the consequence of being in a certain operating system.
    • Extra optional constructor argument in PrologEngine and subclasses, loadFromJar. InterProlog startup files can now be loaded either from the jar file (as before) or from classname-relative locations in the file system: interprolog.P from ...com/declarativa/interprolog/{xsb or swi} and visualization.P from ...com/declarativa/interprolog/gui/ . Loading from the file system can be useful while fiddling with InterProlog itself and testing changes to these files. There's a simple command line argument ("-nojar") that can be used in listener invocation scripts, see ListenerWindow.commonMain().

Known limitations:

Use at your own risk; bug reports welcome except for the following.

  • Object grammar does not support conversion of Java doubles and longs to Prolog numbers, but it recognizes and generates them
  • See comments in streamcontents/4 in com/declarativa/interprolog/interprolog.P for some limitations on serialization of complex (e.g. AWT) objects
  • Changing the XSB top level prompt (defined in x_interp...) would break communication with Java
  • The javaMessage predicate performs no coercion of basic type arguments (e.g., if a formal parameter is long then an actual parameter with int is not acceptable), only of object types (e.g. the actual parameter can be a subclass of the formal parameter).
The information and InterProlog software referred in this page are © Declarativa/XSB Inc. and are provided to you under the terms of the GNU Library License, no warranties, authorship reference mandatory etc. Other items are © their legitimate owners. For further or more actual  information please contact interprolog@declarativa.com
